Med MW

Medium Microwave SDR FEM

6 – 18 GHz

Wideband 6 – 18 GHz with a 4 GHz IF — radar and SIGINT ready.

ApplicationsX-band RadarKu-band SATCOMX-band LEO SATCOMELINT / ESMDRFM JammingMicrowave Backhaul

Key Specifications

RF Frequency Range
6 – 18 GHz
Fixed IF
4 GHz
IF Bandwidth
440 MHz
Tx Gain
+10 dB typ. (no PA) / +40 dB (with PA)
Rx Gain
+20 dB typ. (adjustable)
Tuneable Gain
10 dB (0.5 dB step, 0 to +10 dB)
Nominal Input Power
−30 dBm
Max Output Power
+33 dBm (2 W)
IF Filter Bank
3.78 – 4.22 GHz
RF Filter Bank
Digital Tuneable Filter (100 MHz – 1 GHz)
Harmonic Rejection
Tx 50 dBc / Rx 70 dBc
Spurs Rejection
Tx 50 dBc / Rx 70 dBc
Protection
Over-voltage, reverse polarity, temperature

Module

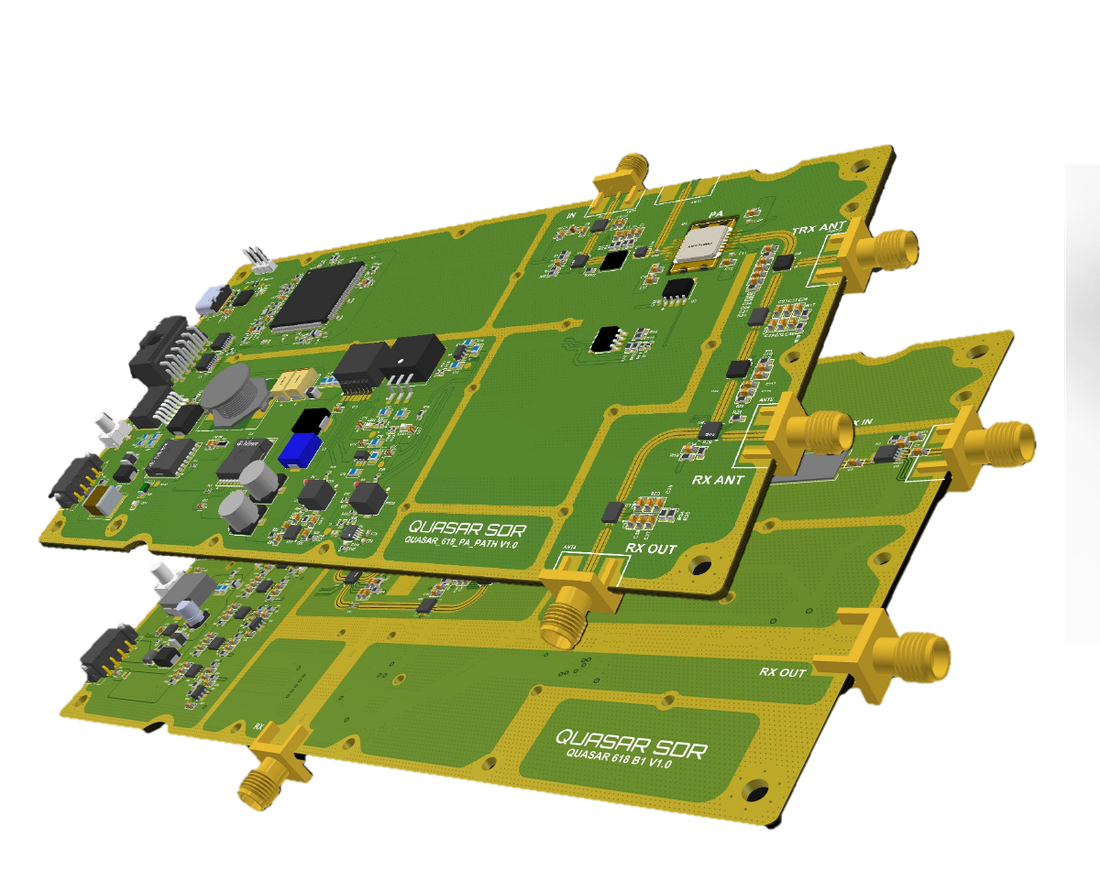

Medium Microwave SDR FEM exploded PCB stack

Exploded view — 2-board PCB stack

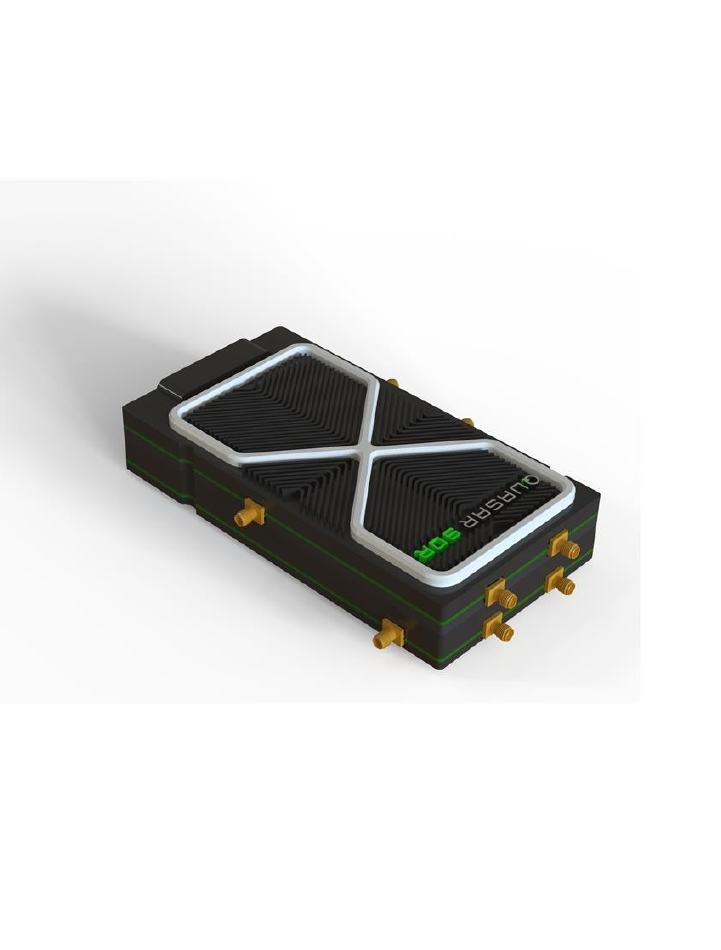

Medium Microwave SDR FEM ruggedised enclosure

Ruggedised enclosure — QSR-MM-FEM-EC

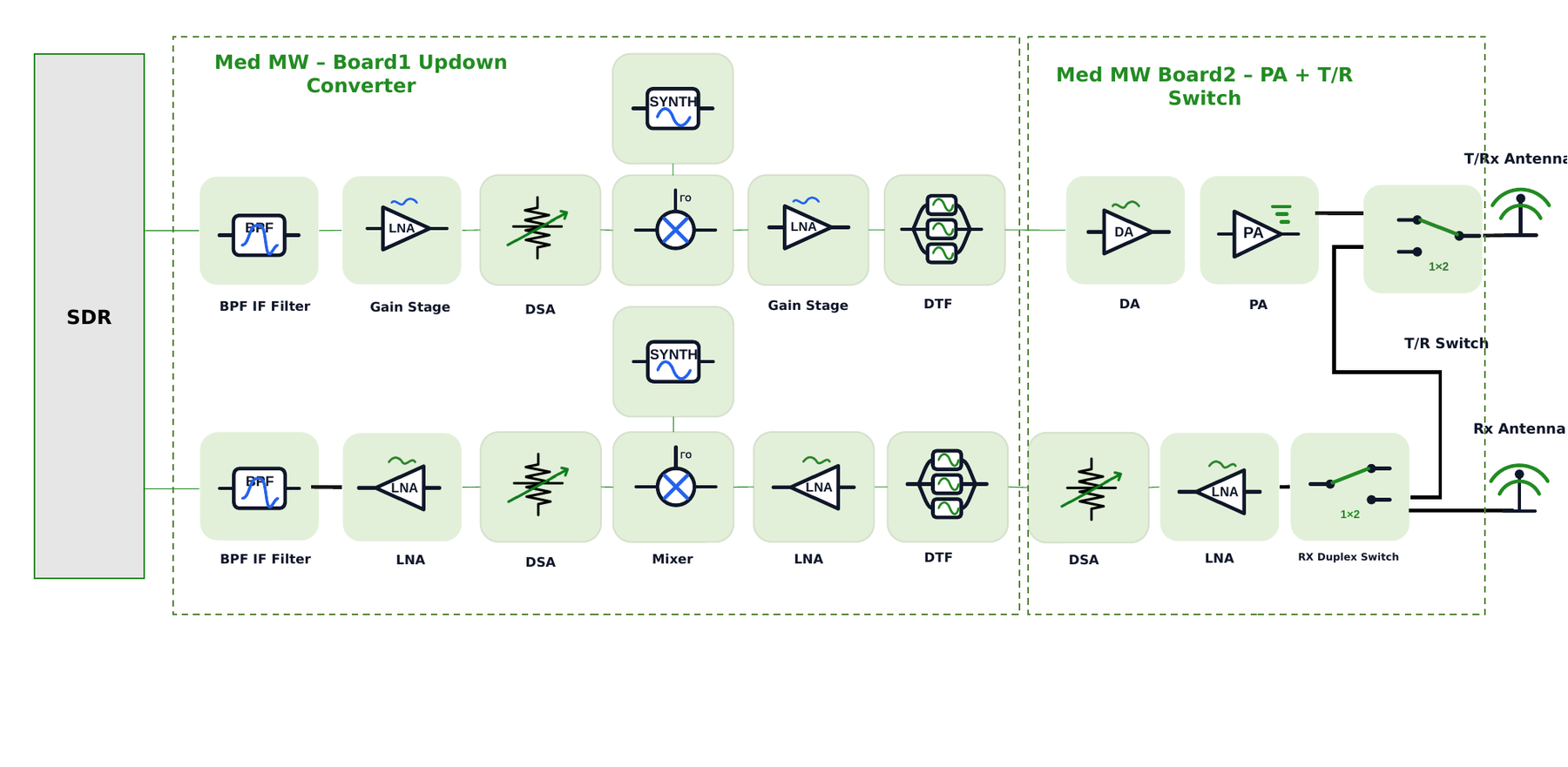

Signal chain

Full Tx/Rx path from SDR through power, filtering, and antenna interface.

Medium Microwave SDR FEM block diagram
The boards

2 boards in the Med MW chain

Individual boards ship as bare PCBs (Open Card). The full series ships as one ruggedised, enclosed assembly — QSR-MM-FEM-EC.

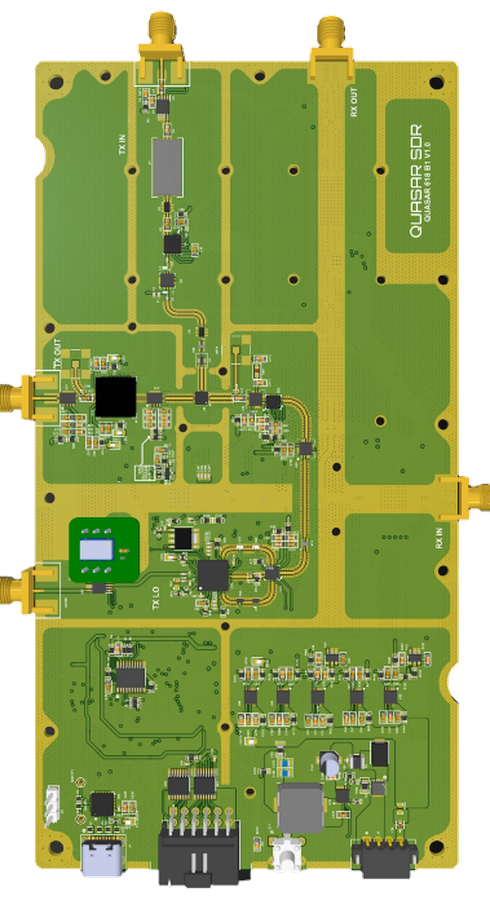

B1 — Up/Down Converter top-view PCB
1

B1 — Up/Down Converter

Wideband 6 – 18 GHz to 4 GHz IF conversion

Bidirectional up/down converter between the SDR's 4 GHz IF and the 6 – 18 GHz RF band. Includes DSA, gain stages, BPF IF filter, digitally tuneable RF filter (DTF), LNA on Rx, and the Rx duplex switch. Designed for SIGINT and broadband microwave EW where tuning agility matters more than peak power.

Key blocks

  • DSA (Tx / Rx)
  • Gain Stages
  • BPF IF Filter (3.78 – 4.22 GHz)
  • Digital Tuneable Filter (DTF)
  • LNA
  • Mixer
  • Driver Amplifier
  • Rx Duplex Switch
QSR-MM-B1-OCopen card

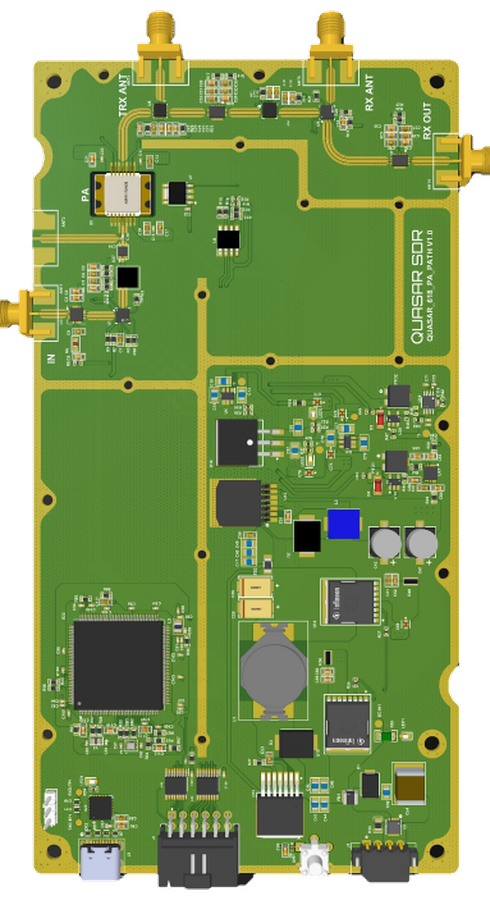

B2 — PA + T/R Switch top-view PCB
2

B2 — PA + T/R Switch

Tx power amplifier and antenna routing

Microwave PA driving 2 W output across 6 – 18 GHz, plus the T/R switch routing between Tx and the Rx-only antenna path. Built for radar exciters and broadband Tx applications.

Key blocks

  • Power Amplifier (2 W)
  • T/R Switch
  • Antenna Interface
QSR-MM-B2-OCopen card

Contact us for exact lead times

Open-card kits and ruggedised enclosed assemblies for the full Med MW family.

Ordering

Med MW ordering options

Order individual boards as bare PCBs (Open Card), or the full series as a ruggedised enclosed assembly. Contact us for exact lead times.

ItemForm factorSKUAction

B1

Wideband 6 – 18 GHz to 4 GHz IF conversion

Open Card (OC)QSR-MM-B1-OCEnquire

B2

Tx power amplifier and antenna routing

Open Card (OC)QSR-MM-B2-OCEnquire

Full series (FEM)

All 2 boards

Enclosed (EC)QSR-MM-FEM-ECEnquire
OC — individual boards as bare PCBs
EC — full series, ruggedised cased assembly
Contact us for exact lead times
