Ext. L

Extended L SDR FEM

0.5 – 1.8 GHz

Bridging UHF and microwave — one chain across 0.5 to 1.8 GHz.

ApplicationsLink 16 / MIDSMode 5 IFF & ADS-BINMARSAT / Iridium L-bandCDL / TCDLGPS L1 / L2 / L5

Key Specifications

RF Frequency Range
0.5 – 1.8 GHz
Tx Gain
+20 dB (no PA) / +57 dB (with PA)
Rx Gain
+20 dB typ.
Tuneable Gain
10 dB (1 dB step) — 0.5 W to 5 W output control
Nominal Input Power
−30 dBm
Max Output Power
+37 dBm (5 W internal)
External PA
Up to 100 W
Rx Filter Bank
4 BPF bands
Tx Filter Bank
6 LPF bands
Harmonic Rejection
45 dBc (Tx / Rx)
Spurs Rejection
60 dBc (Tx / Rx)
VSWR Protection
2:1 max
Coupler Dynamic Range
17 dB (+20 to +37 dBm)

Module

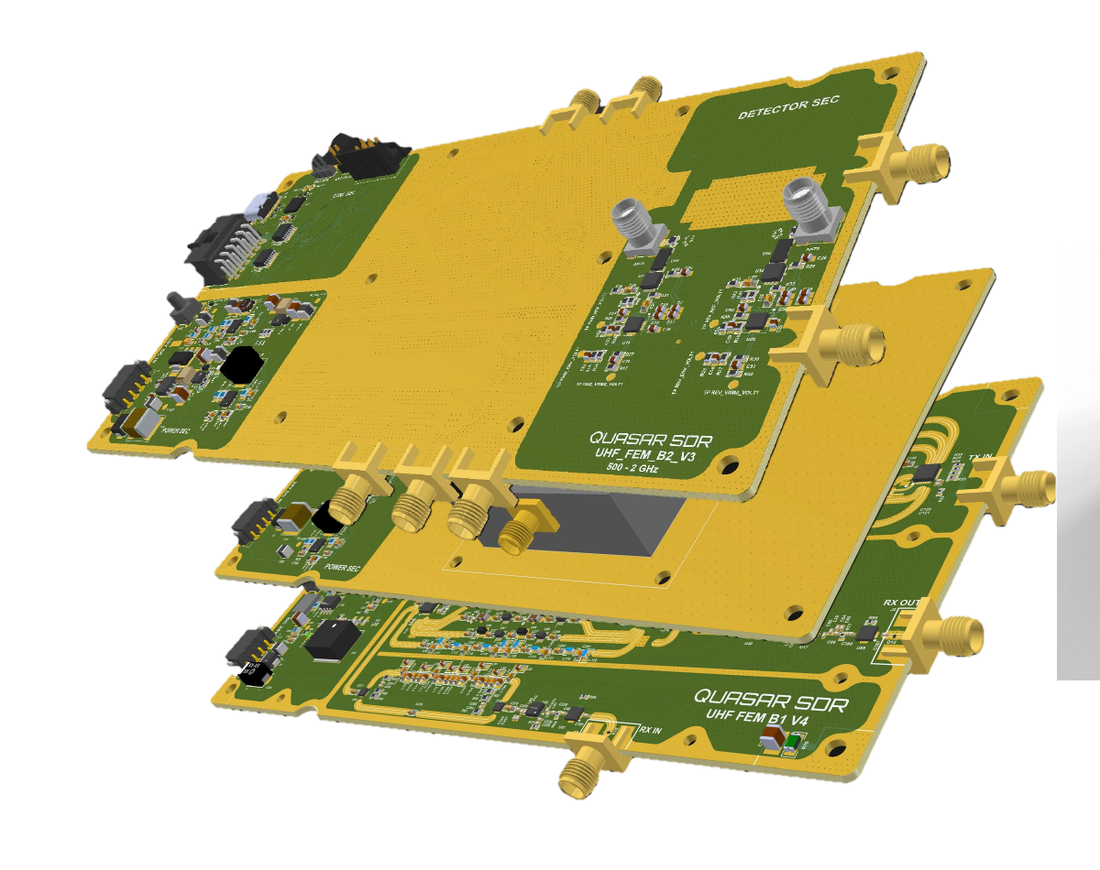

Extended L SDR FEM exploded PCB stack

Exploded view 3-board PCB stack

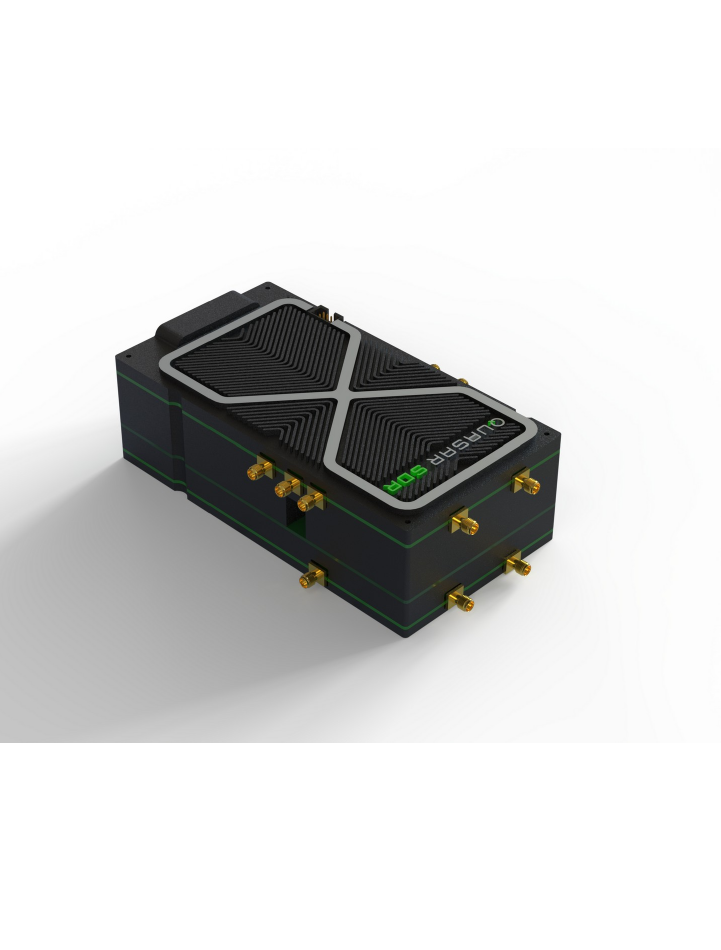

Extended L SDR FEM ruggedised enclosure

Ruggedised enclosure QSR-EL-FEM-EC

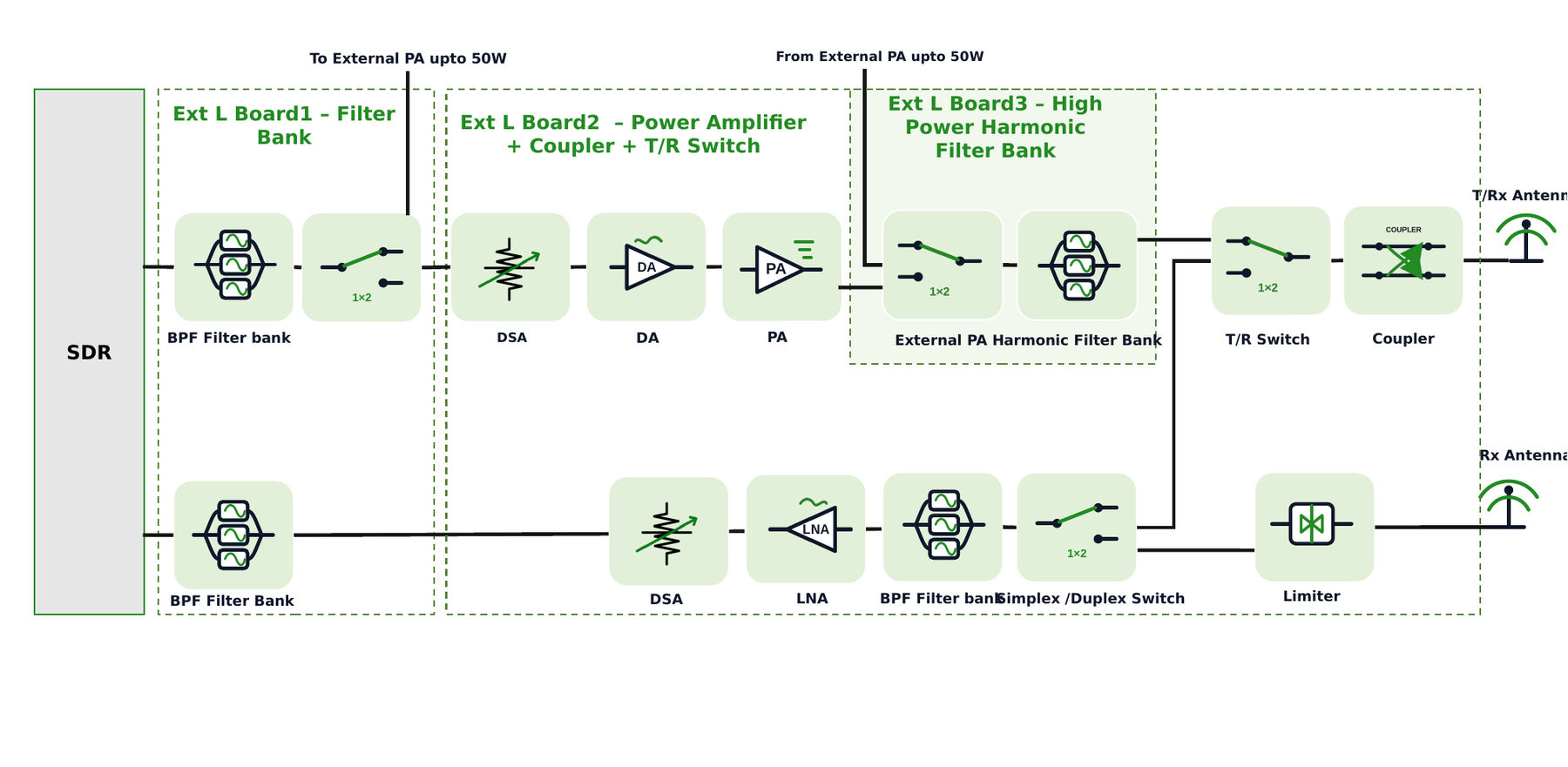

Signal chain

Full Tx/Rx path from SDR through power, filtering, and antenna interface.

Extended L SDR FEM block diagram
The boards

3 boards in the Ext. L chain

Individual boards ship as bare PCBs (Open Card). The full series ships as one ruggedised, enclosed assembly — QSR-EL-FEM-EC.

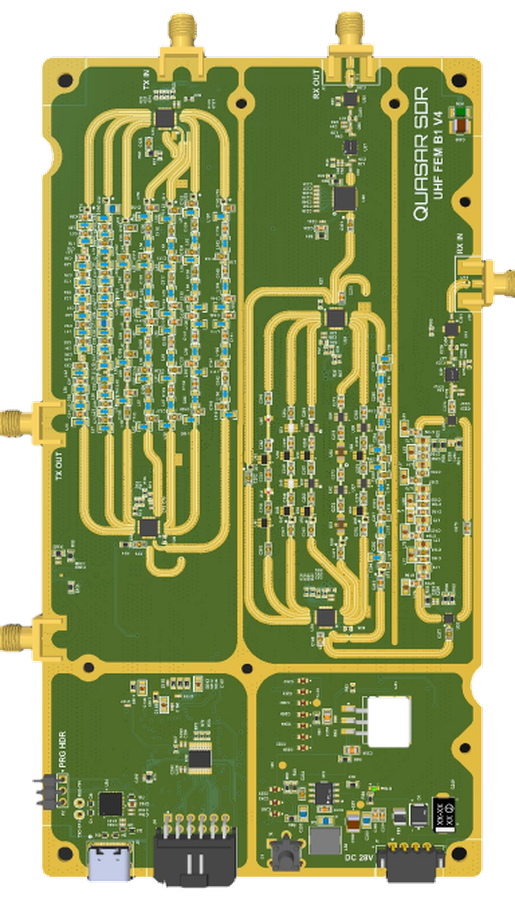

B1 — Filter Bank (SDR Side) top-view PCB
1

B1 — Filter Bank (SDR Side)

SDR-side Tx/Rx conditioning with switched BPF banks

SDR-side board: switched BPF filter bank, DSA, LNA, driver amp, simplex/duplex switch, and limiter. Four Rx BPF bands and six Tx LPF bands cover the full 0.5 – 1.8 GHz range.

Key blocks

  • BPF Filter Bank (Tx / Rx)
  • Digital Step Attenuator
  • LNA
  • Driver Amplifier
  • Simplex / Duplex Switch
  • Limiter
QSR-EL-B1-OCopen card

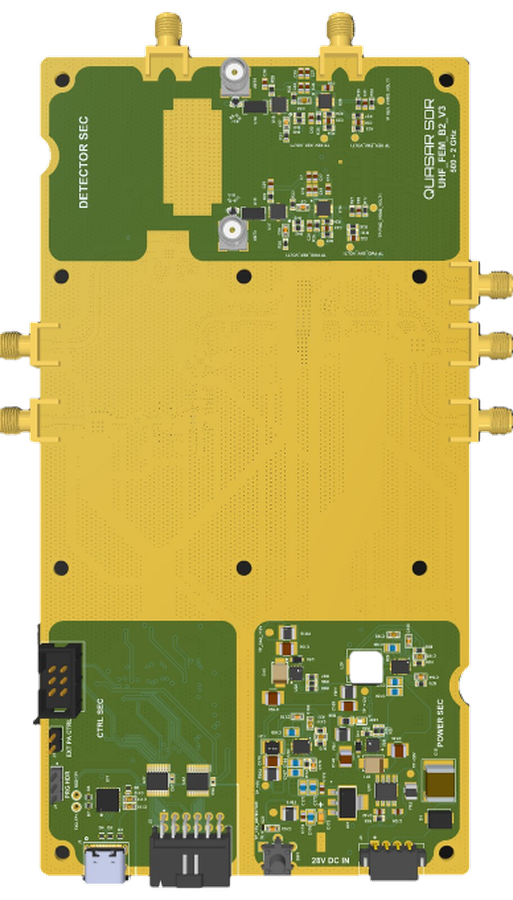

B2 — Power Amplifier + Coupler + T/R Switch top-view PCB
2

B2 — Power Amplifier + Coupler + T/R Switch

Tx amplification, coupling, Tx/Rx routing

Internal 5 W PA, directional coupler for forward/reflected sensing, and T/R switch. Drives external PAs up to 50 W for medium-power L-band links.

Key blocks

  • Power Amplifier (5 W)
  • Directional Coupler
  • T/R Switch
  • Drives external PA up to 50 W
QSR-EL-B2-OCopen card

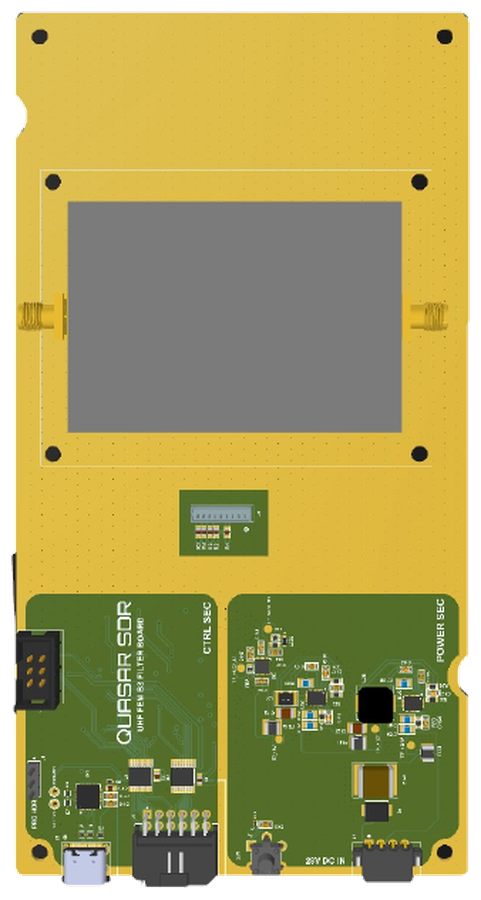

B3 — High Power Harmonic Filter Bank top-view PCB
3

B3 — High Power Harmonic Filter Bank

Final-stage harmonic rejection on the antenna interface

Six-band switched LPF filter bank handling the full PA output. Keeps harmonics out of the antenna feed and meets spectral mask requirements after external PA boost.

Key blocks

  • LPF Filter Bank (6 bands)
  • High Power Switching
  • Antenna Interface
QSR-EL-B3-OCopen card

Contact us for exact lead times

Open-card kits and ruggedised enclosed assemblies for the full Ext. L family.

Ordering

Ext. L ordering options

Order individual boards as bare PCBs (Open Card), or the full series as a ruggedised enclosed assembly. Contact us for exact lead times.

ItemForm factorSKUAction

B1

SDR-side Tx/Rx conditioning with switched BPF banks

Open Card (OC)QSR-EL-B1-OCEnquire

B2

Tx amplification, coupling, Tx/Rx routing

Open Card (OC)QSR-EL-B2-OCEnquire

B3

Final-stage harmonic rejection on the antenna interface

Open Card (OC)QSR-EL-B3-OCEnquire

Full series (FEM)

All 3 boards

Enclosed (EC)QSR-EL-FEM-ECEnquire
OC — individual boards as bare PCBs
EC — full series, ruggedised cased assembly
